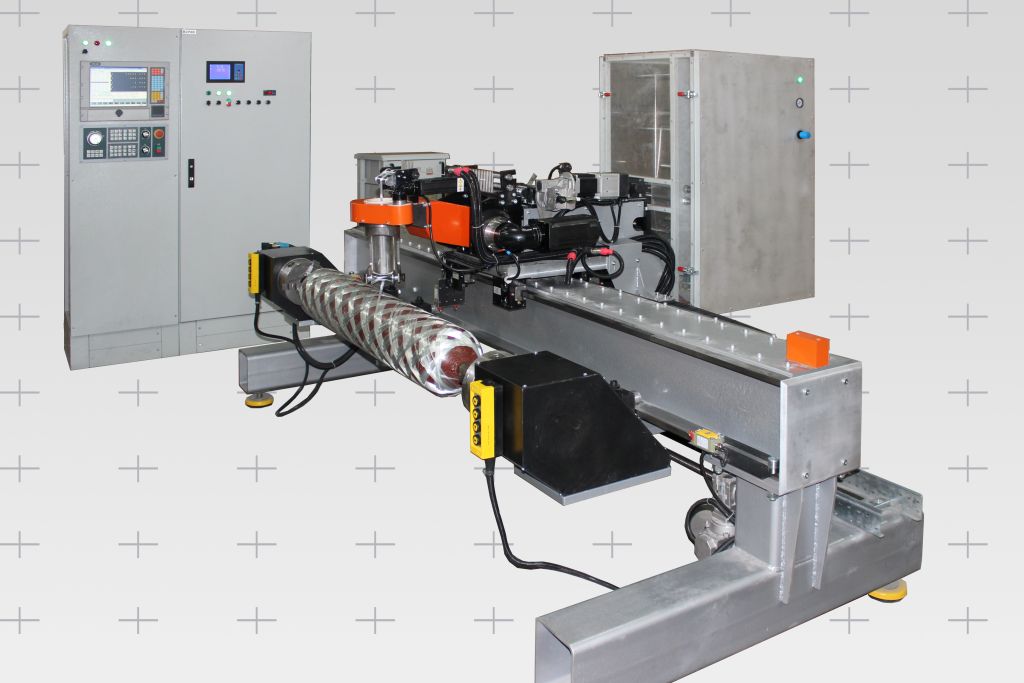

The machine provides the manufacture of products by the method of wet winding of a tape from glass, organic and carbon tows. A distinctive feature of the machine is the active releasing mechanisms located on the carriage of linear displacement module and intended for storing and supplying the material tows directly into the machine path without additional bends.
1 | Accuracy of resin temperature maintaining in the bath, °С | ±3 |
2 | Carriage speed, mpm | up to 40 |
3 | Diameter of winding products, mm | from 50 to 600 |
4 | Heating temperature of the resin in the impregnation bath, °С | 75 |
5 | Length of winding products, mm | up to 1200 |
6 | Mandrel rotation speed, rpm | up to 120 |
7 | Mandrel weight with plastic, kg | up to 100 |
8 | Material tension, kgf | up to 70 |
9 | Number of simultaneously controlled coordinates, pcs | 4 |
10 | Number of spindles, pcs | 1 |
11 | Number of spools, pcs | 4 |
12 | Pay-out-eye speed, mpm | up to 50 |
13 | Power consumption, kVA | 5 |
14 | Resin temperature control | automatic |
15 | Tension control | automatic |
