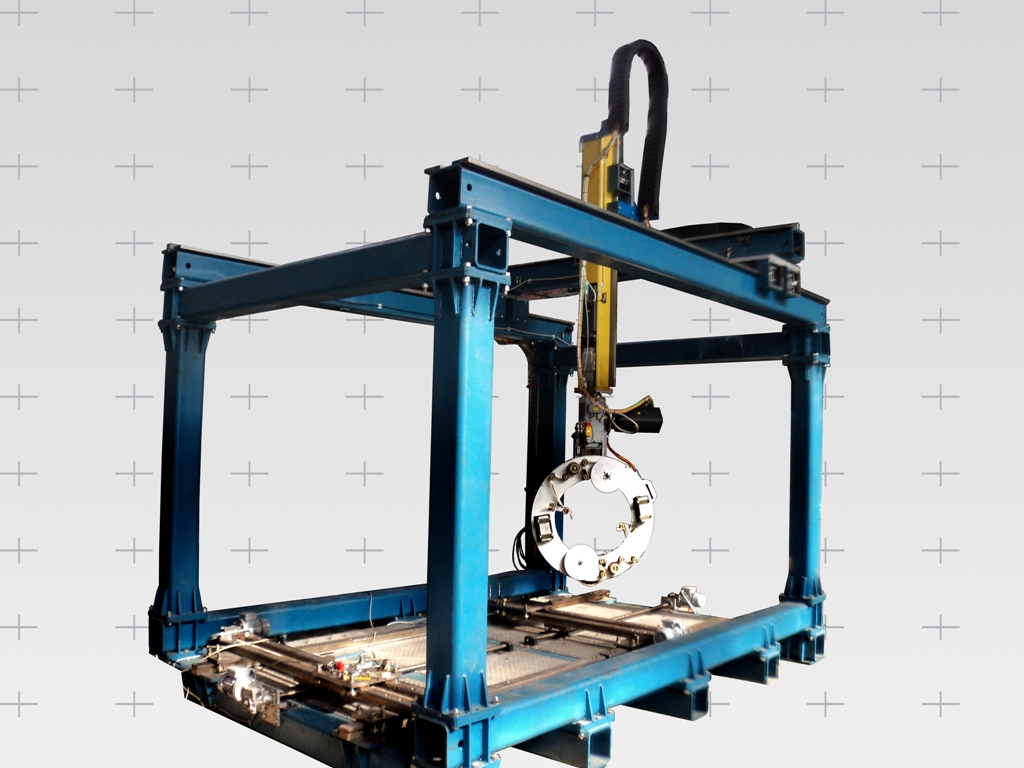

The machine is designed for the manufacture of spatially curved pipelines for various purposes from polyamide film and other materials by winding on a fixed mandrel. The control of the machine in the process of winding is performed by the SINUMERIK 840 dsl CNC system.

Main technical characteristics
1 Material tension, kgf up to 25
2 Maximum diameter of winding pipe (mandrel), mm 300,00
3 Minimum diameter of winding pipe (mandrel), mm 30,00
4 Number of simultaneously controlled coordinates, pcs 6
5 Pipe bend angle, º up to 90,00
6 Power consumption, kVA 30,00
7 Product dimensions, mm:
     2 000, 00
     1 000,00
8 Speed of coordinates movement:
     axis X, mpm
     axis Y, mpm
     axis Z, mpm
     axis A, rpm
     axis B, rpm
     axis C, rpm
9 Tension control automatic
10 Weight of the machine, kg 5 000
