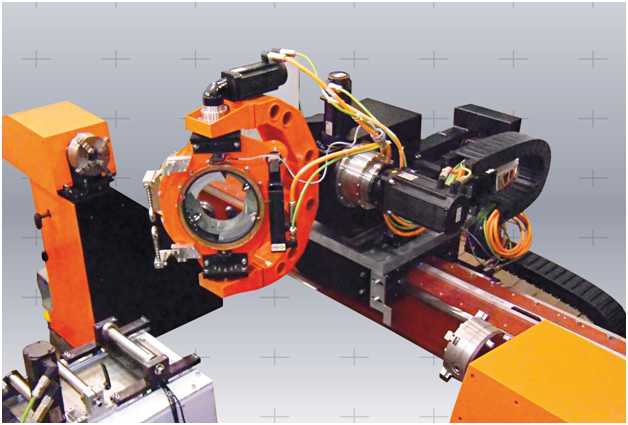

The machine is designed for the manufacture of spatially curved pipelines of polymer composite materials by the method of dry and wet winding. For dry winding polyamide tape is used.  Application field of the machine - pilot and small-scale production. The machine provides layer-by-layer geometrically ordered winding of a tape or tow on a mandrel, performing various reinforcement schemes. Structurally, the CNC system, consoles, servo drives and controllers are mounted in dust-proof electrical cabinets.  The degree of protection of electrical cabinets - IP64, panels of control panels, operator panels - IP65. The degree of protection of electric motors - IP54.

Main technical characteristics
1 Diameter of winding products, mm from 50 to 90
2 Length of winding products, mm up to 1250
3 Mandrel weight with plastic, kg up to 100
4 Material tension during tape winding, kgf up to 20
5 Material tension during tow winding, kgf up to 50
6 Weight of the machine, kg no more than 2000
7 Winding speed, mpm 24,00
