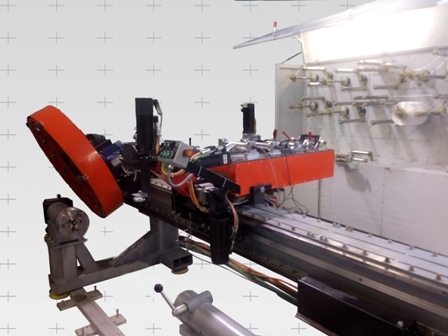

Quick-set technology module that provides manufacturing of products of complex geometric shape using the method of wet helical-ring winding (HRW) tapes from glass, organic and carbon tows (filaments) and the method of oblique longitudinal-transverse winding (OLTW). The module is controlled in the process of winding by a multi-axis electric drive and a numerical control device based on an industrial workstation.
| 1 | Carriage speed, mpm | 0,7 |
| 2 | Current frequency, Hz | 50,00±1 |
| 3 | Diameter of winding products, mm: HRW method (pay-out-eye) OLTW method (swivel head) |
500 200 |
| 4 | Heating temperature of the resin in the impregnation bath, °С | up to 75 |
| 5 | Length of winding products, mm | 3000 |
| 6 | Logging of technological parameters | electronic recorder termodat - 17KZ |
| 7 | Mandrel rotation speed, rpm | 150 |
| 8 | Mandrel weight with plastic, kg | 500 |
| 9 | Material tension, kgf | up to 80 |
| 10 | Number of simultaneously controlled coordinates, pcs | 4+1(swivel head) |
| 11 | Number of spools, pcs | 8 |
| 12 | Supply voltage, V | 380±38 |
| 13 | Winding angle, º | from 10 to 90 |
