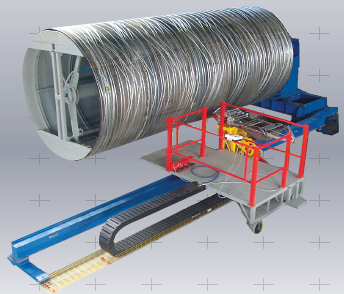

The machine is designed for the manufacture of products by the method of wet winding of glass fiber materials using a system of numerical control.

Main technical characteristics
1 Carriage speed, mpm up to 48
2 Diameter of winding products, mm 1000/2400
3 Length of winding products, mm up to 6000
4 Mandrel rotation speed, rpm up to 10
5 Mandrel weight with plastic, kg up to 3000
6 Material tension, kgf up to 100
7 Number of simultaneously controlled coordinates, pcs 2
8 Number of spools, pcs up to 60
9 Tension control automatic
