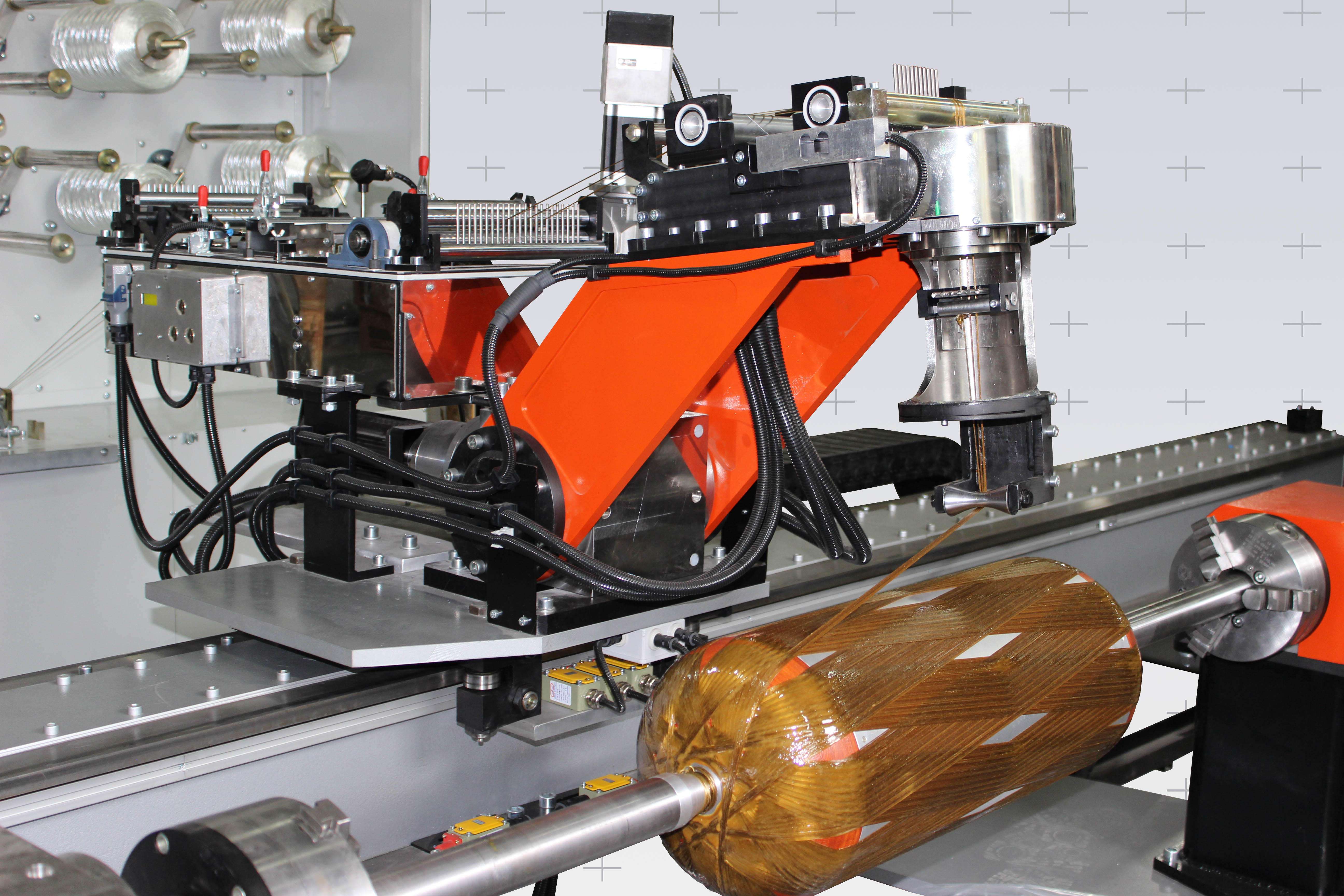

The winding machine is designed for the manufacture of power shells of complex geometric shape from PCM by the method of oblique longitudinal-transverse winding and the method of wet helical-ring winding of glass, organic and carbon tows (filaments). A dry winding module, designed for winding with prepregs and other materials that do not require impregnation, can be installed on the main carriage of the linear movement module of the machine.
1 | Carriage speed, mpm | 60 |
2 | Diameter of winding products, mm: HRW method (pay-out-eye) OLTW method (swivel head) |
500 250 |
3 | Heating temperature of the resin in the impregnation bath, °С | up to 75 |
4 | Length of winding products, mm | 4000 |
5 | Logging of technological parameters | electronic recorder |
6 | Mandrel rotation speed, rpm | 200 |
7 | Mandrel weight with plastic, kg | 1000 |
8 | Material tension, kgf | up to 75 |
9 | Number of simultaneously controlled coordinates, pcs | 5+1(swivel head) |
10 | Number of spools, pcs | 120 |
